Power unit

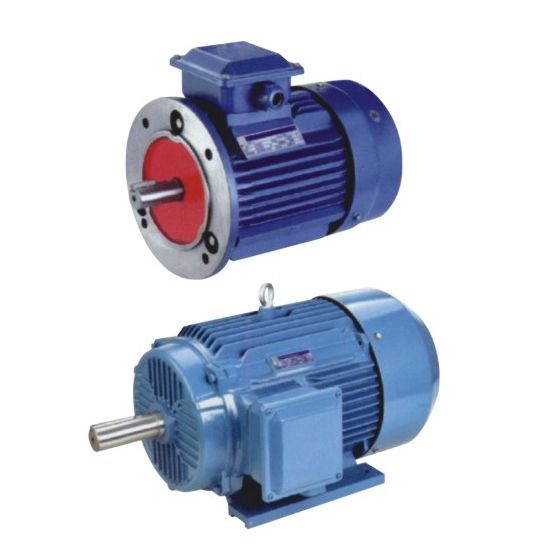

YD2 YDT2 series pole-changing and multi-speed asynchronous motor

YD2, YDT2 series motors are multi-speed by changing the wind poles. All the performance are in accordance with IEC standard. It is widely used on the step speed regulation machinery, making them compact conformation, lower noise and energy conservation.

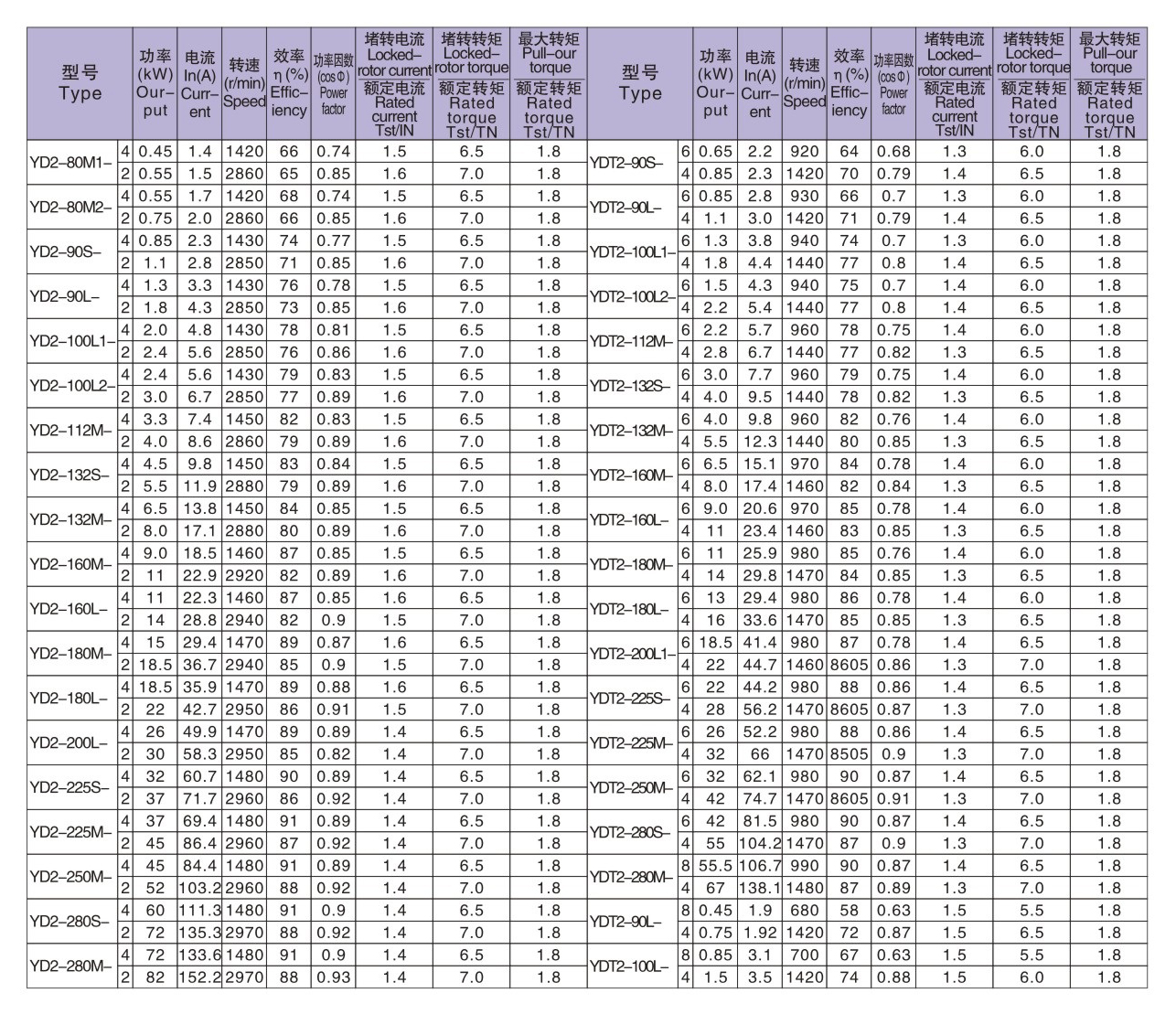

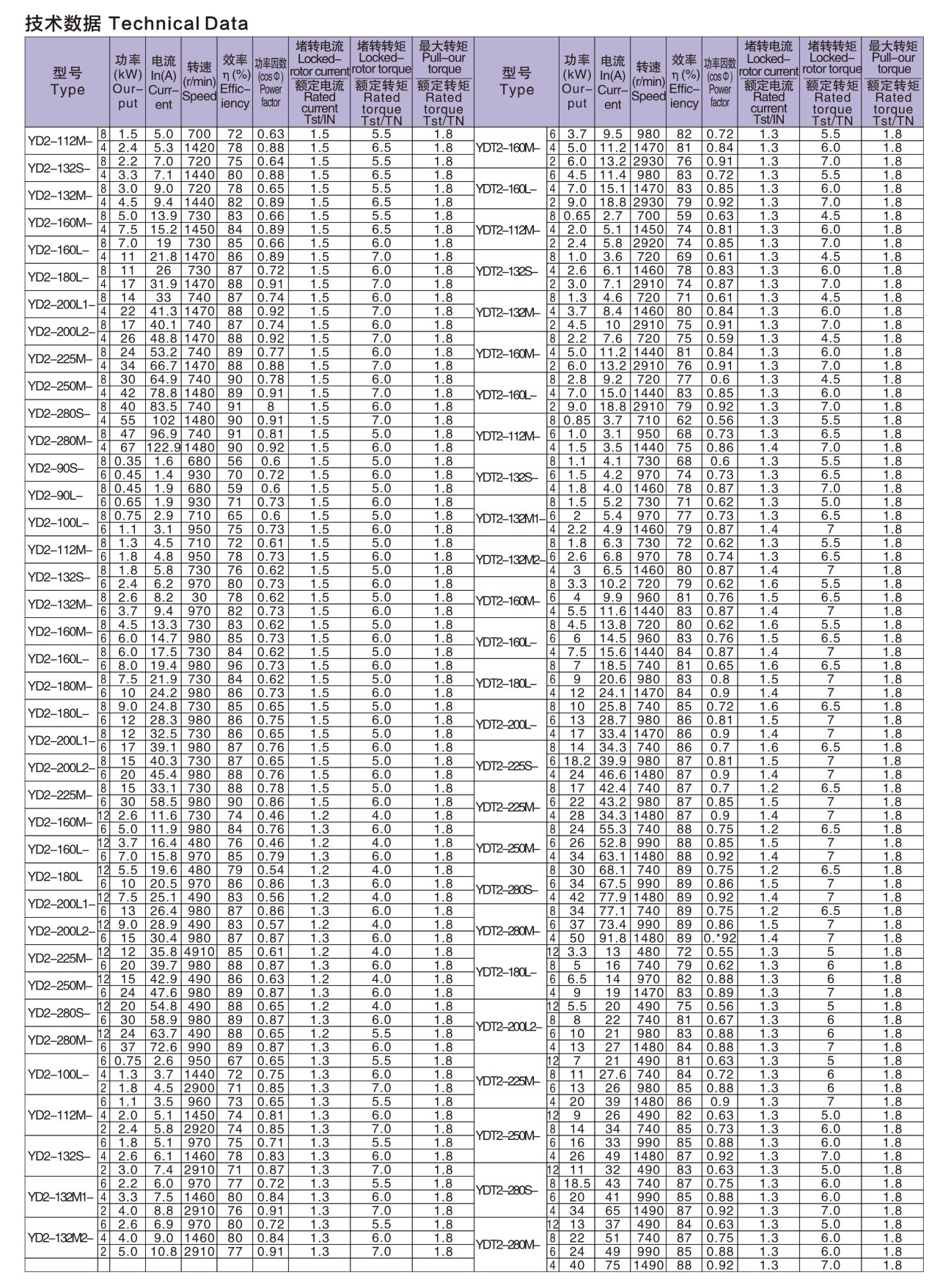

Technical data

Centre height of frame: 80-280mm

Power range: 0.35-82kw

Rated voltage: 380V

Rated frequency: 50HZ or 60HZ

Protection class: IP54 or IP55

Insulation class: F/H

Duty type: S1
