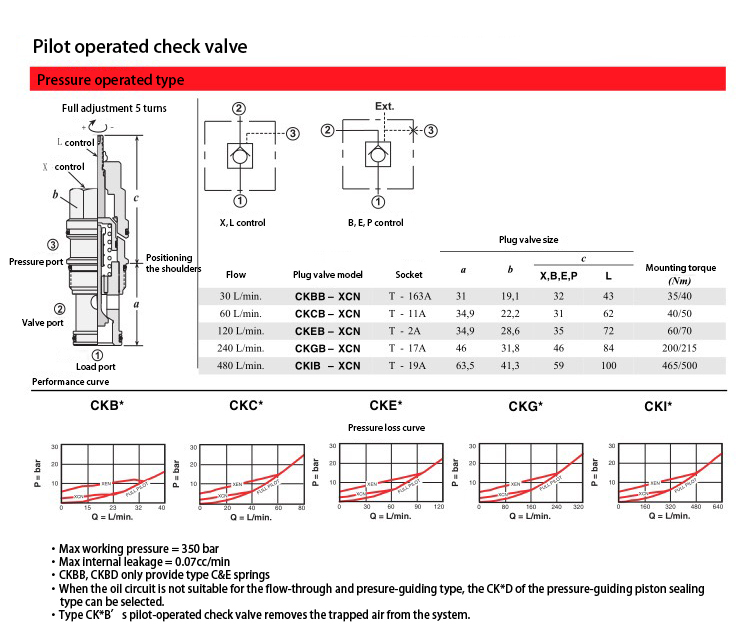

Max working pressure = 350 bar

Max internal leakage = 0.07cc/min

CKBB, CKBD only provide type C&E springs

When the oil circuit is not suitable for the flow-through and pressure-guiding type, the CK*D of the pressure-guiding piston sealing type can be selected.

Type CK*B's pilot-operated check valve removes trapped air from the system
