Directional valves

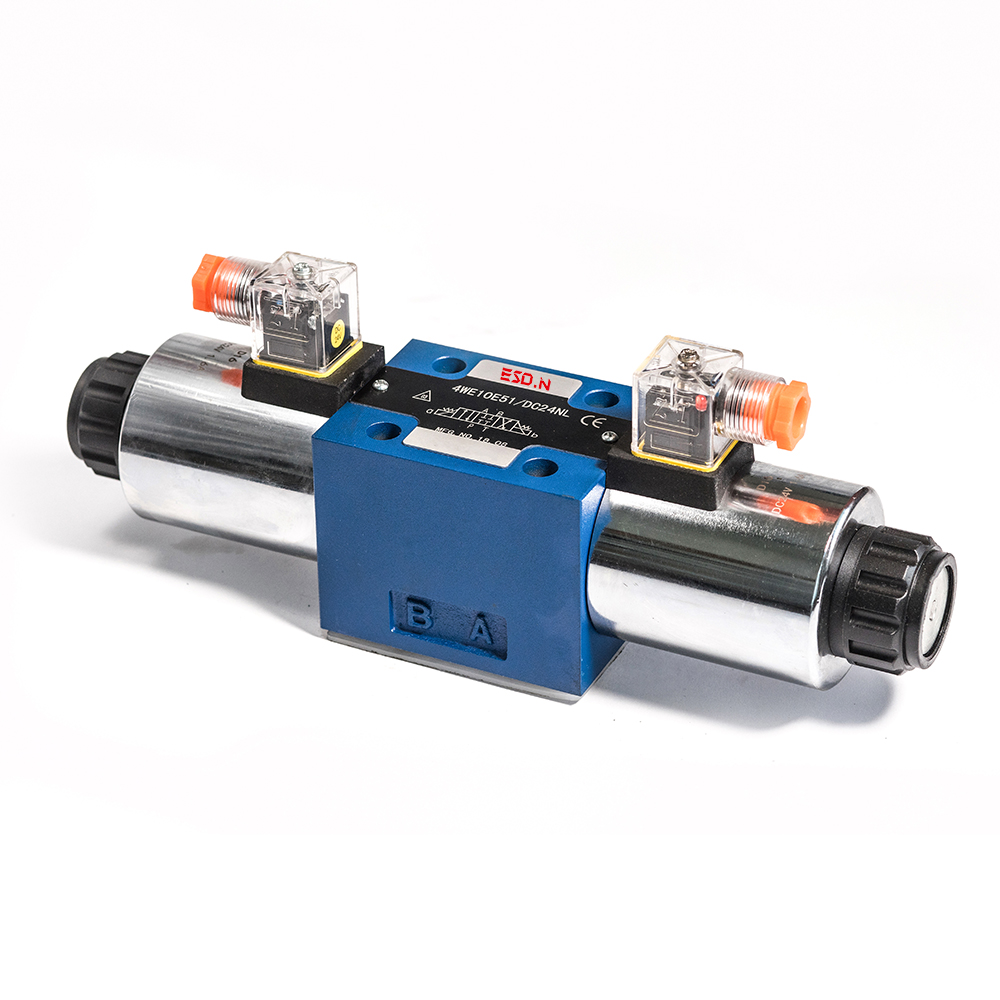

4WE10E51/DC24NL Double solenoids directional valve Rexroth series

Technical data

Model: 4WE10

Max. flow rate (L/min): 120

Max. working pressure (Mpa): A, B, P port: 31.5 / T port: 16

Weight (kgs): single solenoid type: 4.7 / double selonoids type: 6.2

Hydraulic fluid: Mineral oil

Seal material: NBR seals

Temperature range (℃): -30 to +80

Viscosity range (mm2/s): 2.8 to 500

Oil cleanliness class according to ISO4406: Class 20118115
