Technical data

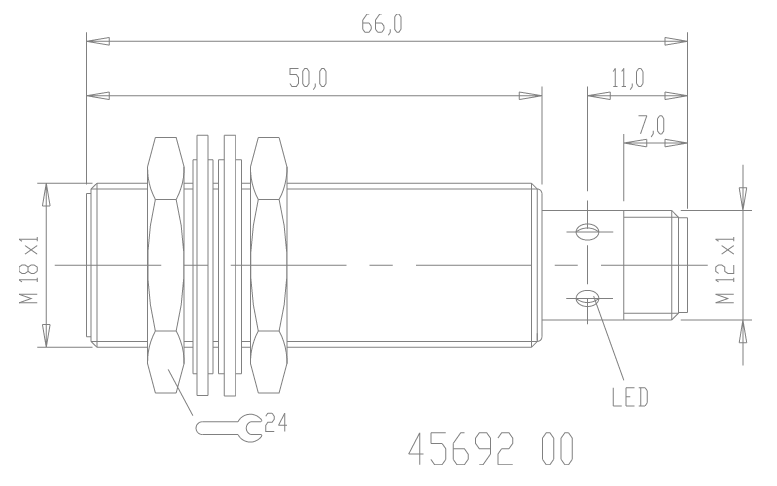

Dimension: Ø 18*55mm

Style housing: M18*1

Installation: For flush mounting

Range: 8mm

Switching output: PNP normally open (NO)

Switching frequency: 600Hz

Housing material: Brass, PTFE coated

Connection: Connector, M12*1-Male, 3-pin

Operating voltage ub: 10-30VDC

Ambient temperature: -25℃~+70℃

IP rating: IP67
