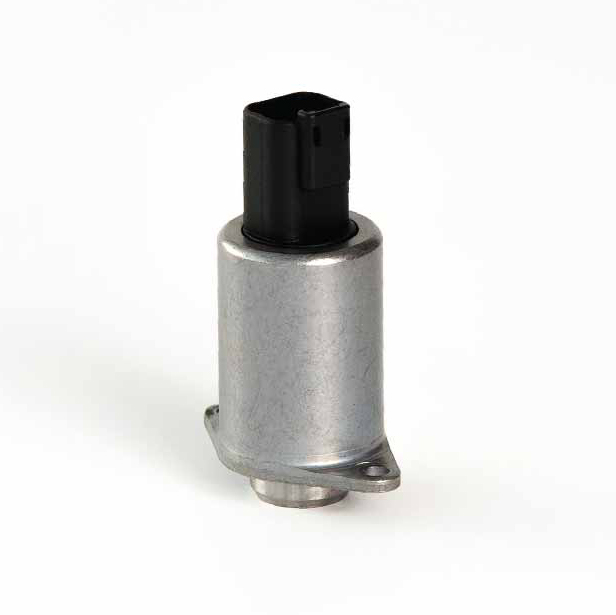

(1) Suitable for Thomas type PPCD05 proportional pressure reducing valve

(2) Screw connection

(3) This electromagnet adopts dustproof and waterproof design.

Notes:

(1) In order to achieve stable control, first drain the air in the hydraulic system.

(2) The connection between the electrical control system and electromagnet should be equipped with an overcurrent protection device to prevent the electromagnet and electronic control components from being burned under abnormal circumstances.

(3) Working medium: Mineral oil conforms to DIN51524 Standard.
