Specialty

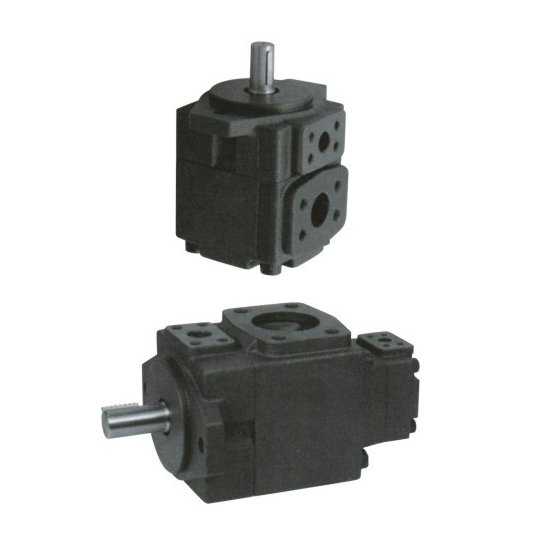

Featured by advanced performance, reasonable structure, good creditability, lower noise, ultra-low pulse and stable quality. Precisely made, the product can be used in the equipment with high precision and low noise, and is widely used in cutting, plastic, leather, forging and engineering machinery fields.

Notes

1. When pressure of pumps exceeds 16MPa with displacement of 4, 6 & 8, speeds should be more than 1450r/min.

2. Reduce the negative pressure of the inlet when the single pump or double pumps with large displacement is at high speed.

3. Using synthetic hydraulic fluids and water containing hydraulic fluids, limit the max speed at 1200r/min.

4. Speed at 1000r/min is suggested on occasions with lower noise strictly required.

5. Noisiness is available in working conditions of 14MPa and 1200r/min.

6. Input power is available in working conditions of 16MPa and 1500r/min.
