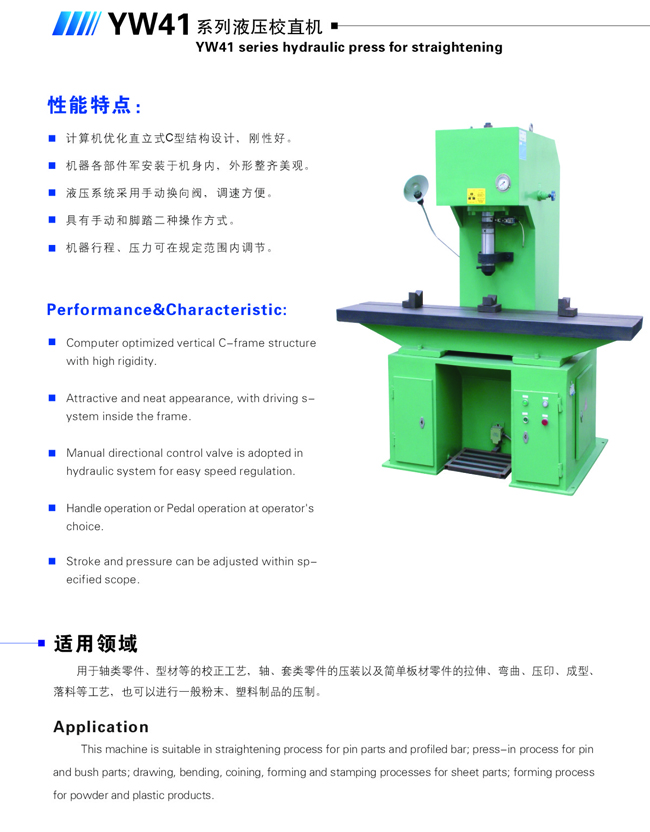

It is used for the correction process of shaft parts, profiles, etc., the pressing of shaft and sleeve parts, and the stretching, bending, embossing, molding, blanking and other processes of simple plate parts. It can also be used for general powder and plastic products. suppression.

1) Type: 160T  2) Nominal force: 1600KN  3) Max. pressure of liquid: 26MPa   4) Max. opening height: 500mm

5) Max. stroke of the piston rod: 320mm  6) The velocity of the spindle nose: Down 25mm/s Return 58mm/s

7) Depth of throat: 3800mm  8) Table size: F.B. 2000mm L.R. 600mm

9) Table height above the floor: 1000mm  10) Motor power: 7.5kw

11) Outline dimensions: F.B. 1650mm L.R. 2000mm  Height 2800mm
