Material

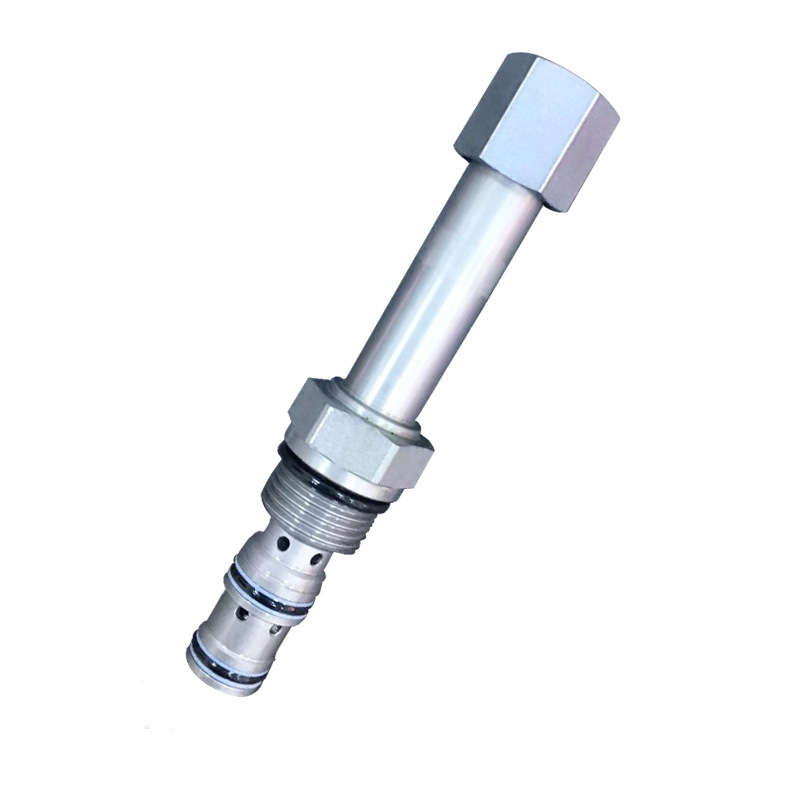

Plug-in: Weight 0.16kg (0.35 pounds), steel with hardened working surfaces, galvanized outside, nitrile O-rings and polyurethane back-up rings (standard)

Standard valve block: Weight 0.16kg (0.35 pounds), anodized high-strength aluminum alloy, Grade 6061 T6, preset pressure reaches 240 bar (3500psi), ductile iron and steel valve blocks available, dimensions may vary, please consult factory

Standard coil: Weight 0.27kg (0.6 pounds), uniform thermoplastic package, Class H high temperature resistant magnetic wire

E-type coil: Weight 0.41kg (0.9 ounce), fully encapsulated in a solid metal case, compliant with IP69K protection standard, with integrated connector
