VIS embedded hydraulic one-way valve micro-threaded cartridge valve hydraulic control CVB0 built-in plug-in one-way valve

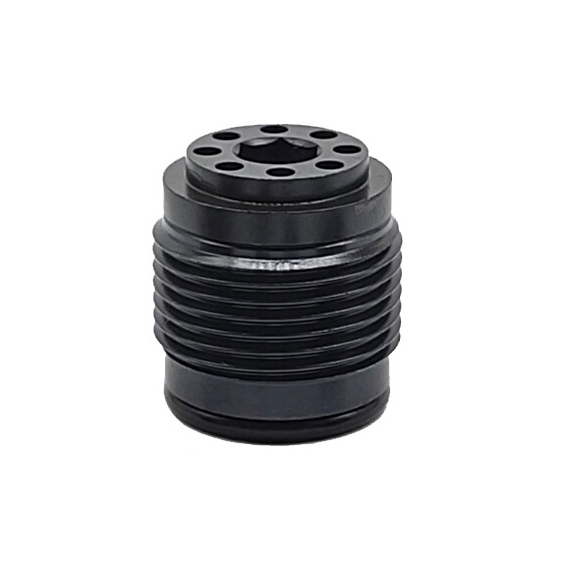

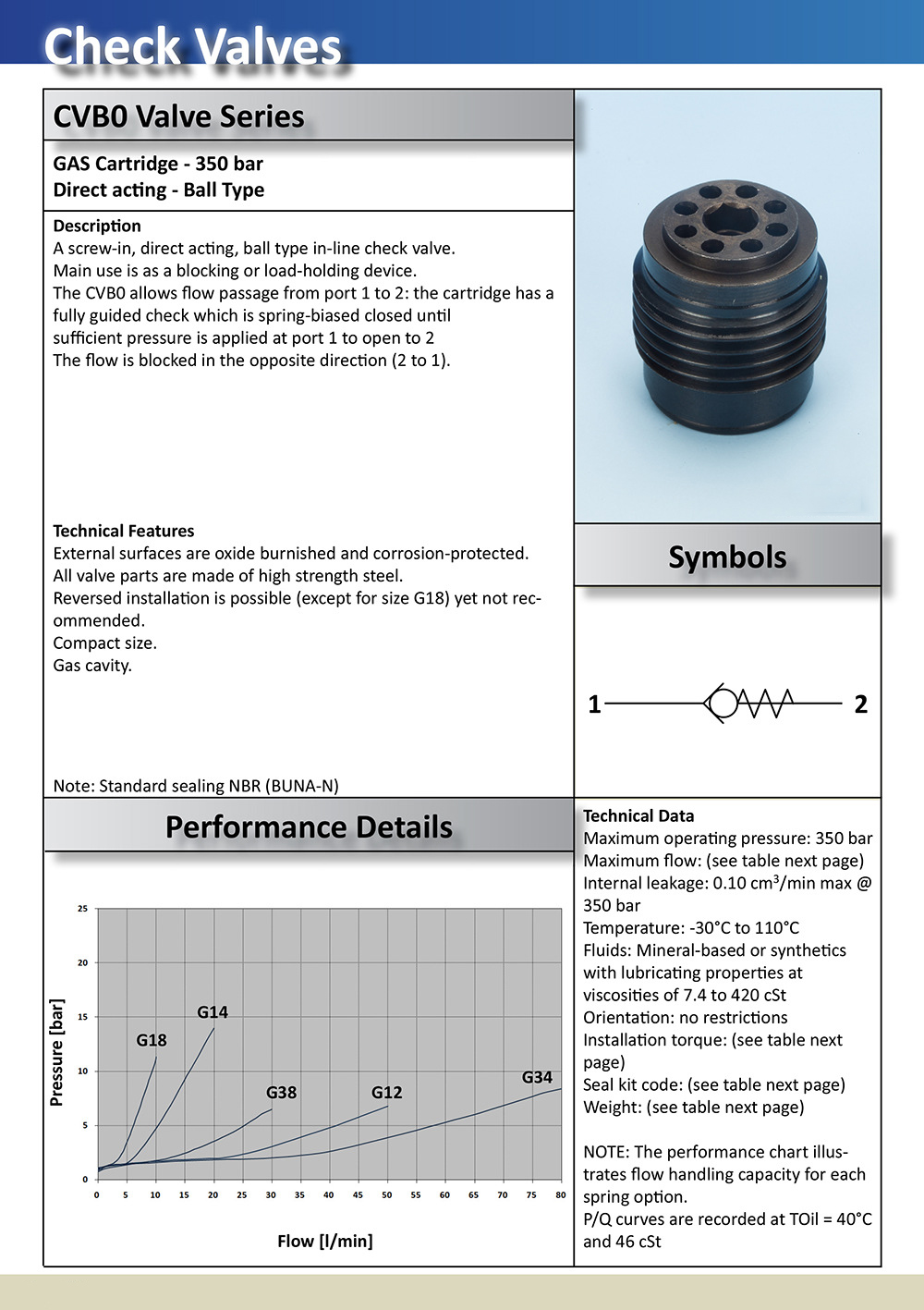

A screw-in, direct acting, ball type in-line check valve
Main use is as a blocking or load-holding device
The CVB0 allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to 2.
The flow is blocked in the opposite direction (2 to 1).
