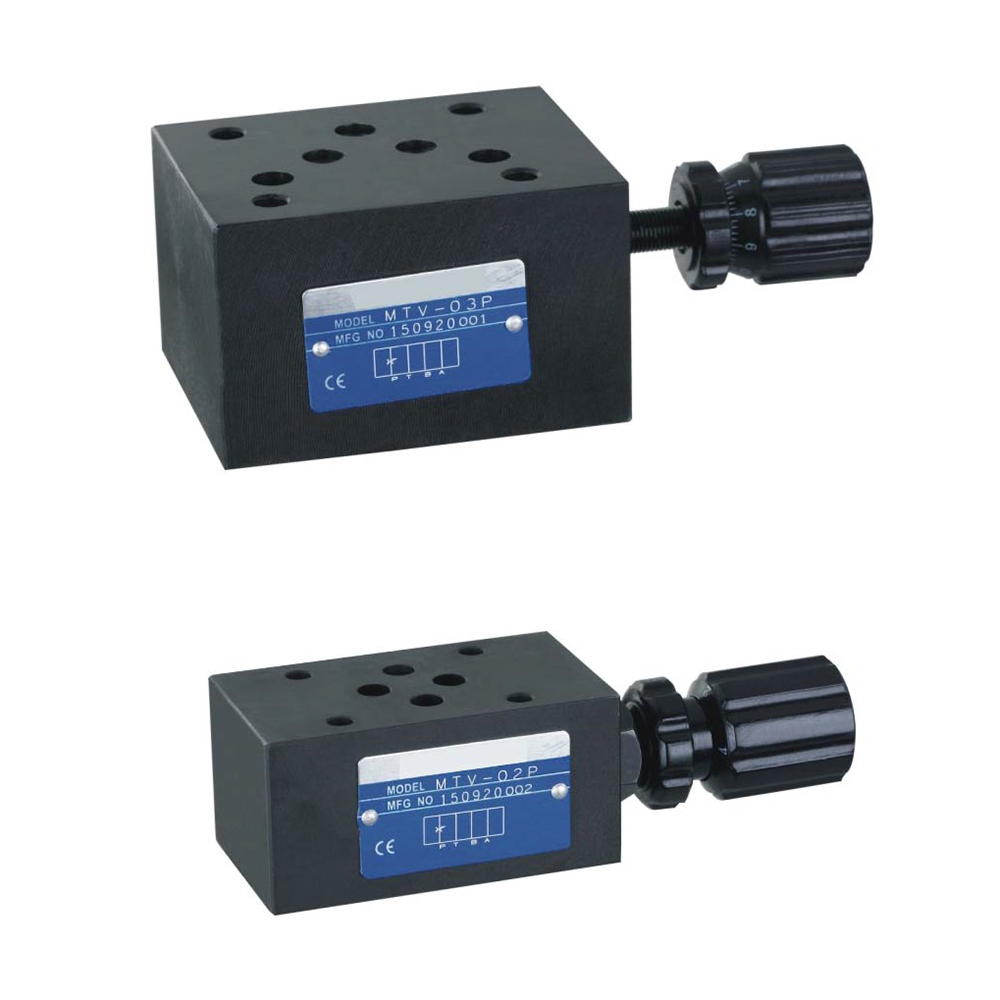

MTV series valve is used to control the actuator speed and for other flow control valve operations and applications.

The flow adjustment can be done by adjusting the hand knob or the set screw if order without the hand knob.

Clockwise rotation increases the throttling, hence, the flow passage is reduced.

Three valve sizes are available. They are series 02 with flow up to 50lpm/13.2gpm and series 03 with flow up to 100lpm/26.4gpm. Both with pressure rated at 320bar/4570psi.
