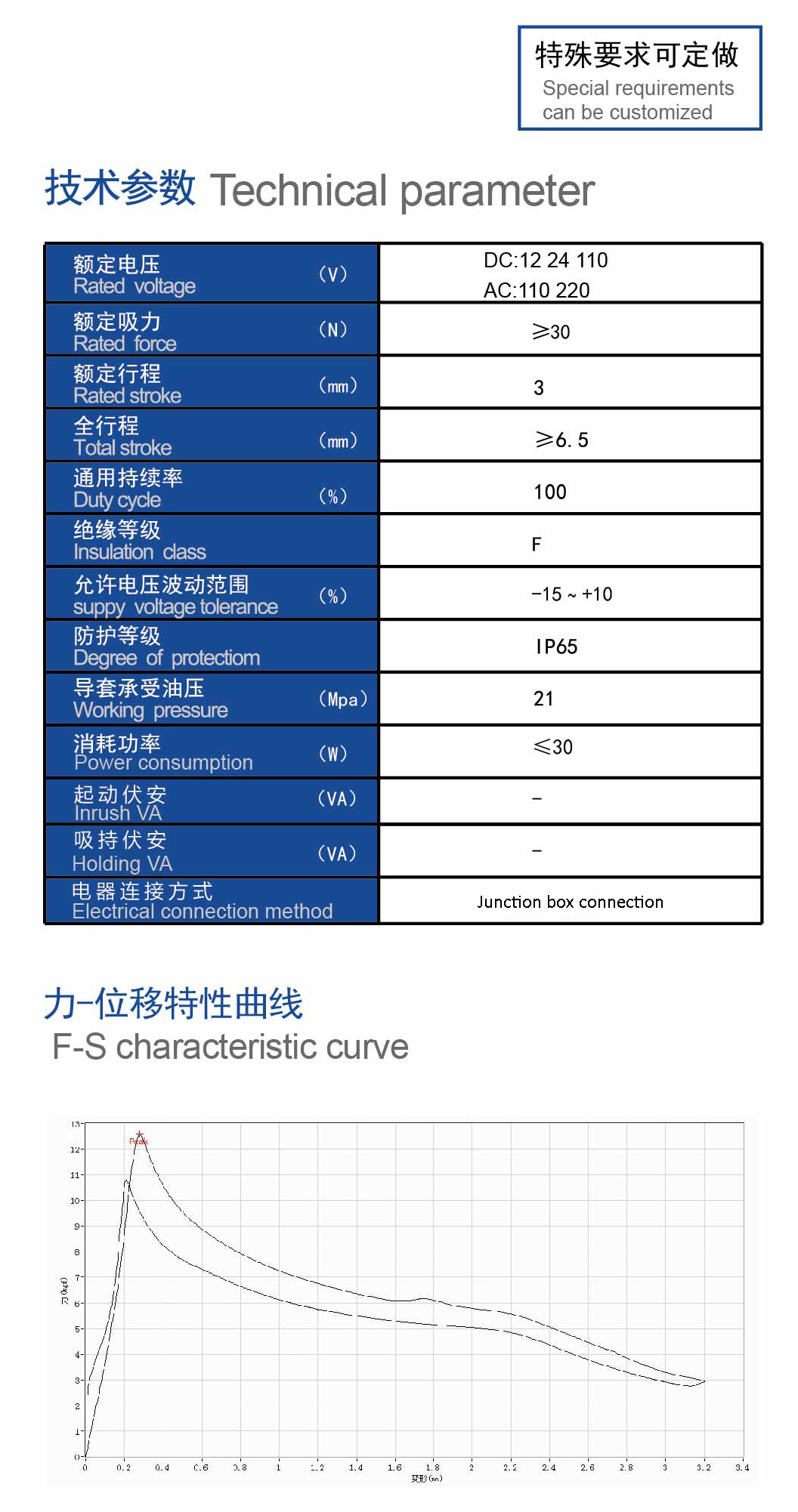

Technical data

1. Rated voltage: DC: 12 24 110V / AC: 110 220V

2. Rated stroke: 3mm

3. Duty cycle: 100%

4. Insulation class: F

5. Max operation frequency: 12000t/h

6. Supply voltage tolerance: -15~+10%

7. Protection degree: IP65

8. Working pressure: 21MPa
