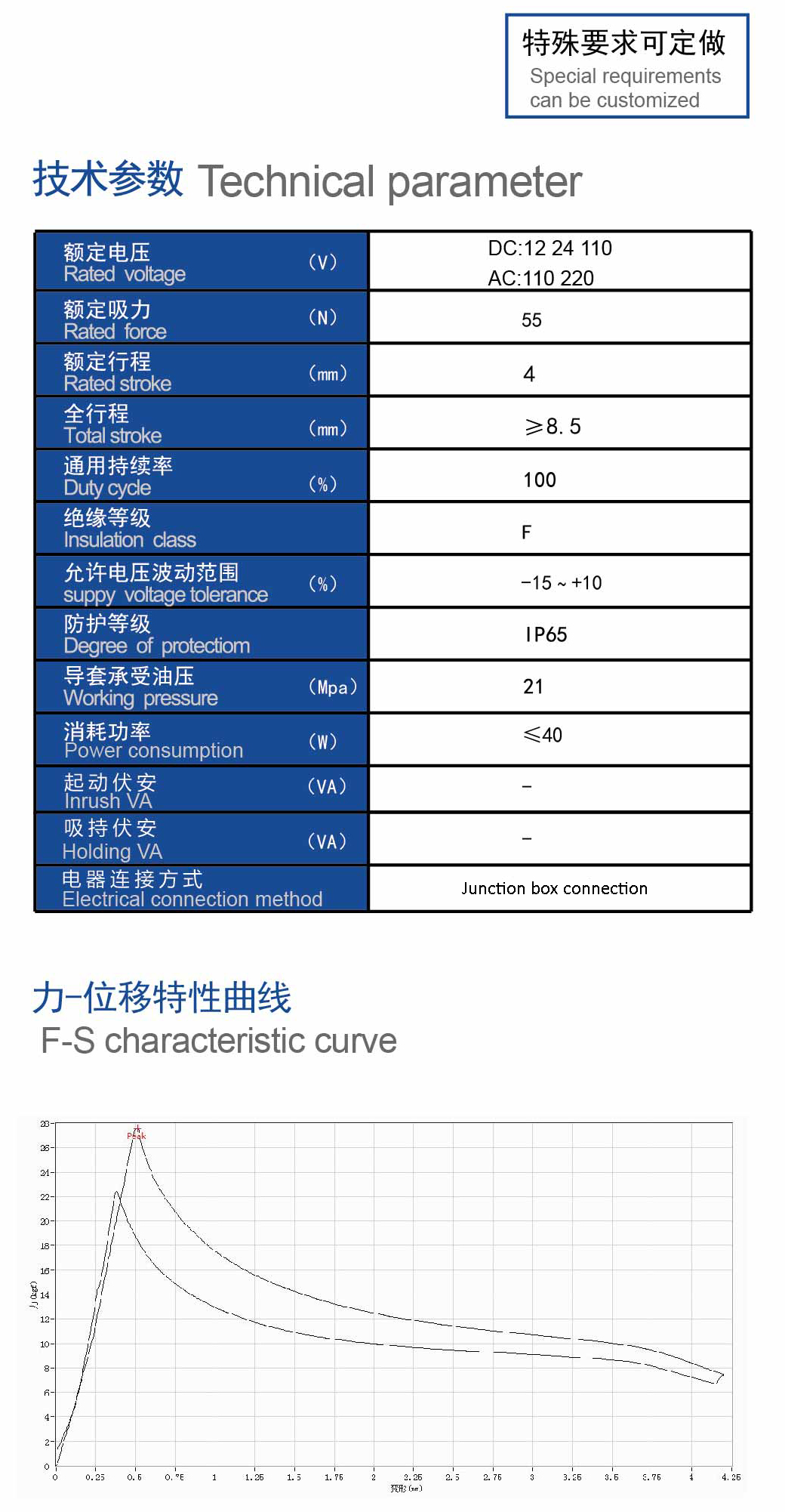

Technical data

1. Rated voltage: DC: 12 24 110V / AC: 110 220V

2. Rated force: 55N

3. Rated stroke: 4mm

4. Duty cycle: 100%

5. Insulation class: F

6. Max operation frequency: 12000t/h

7. Supply voltage tolerance: -15~+10%

8. Protection degree: IP65

9. Working pressure: 21MPa
