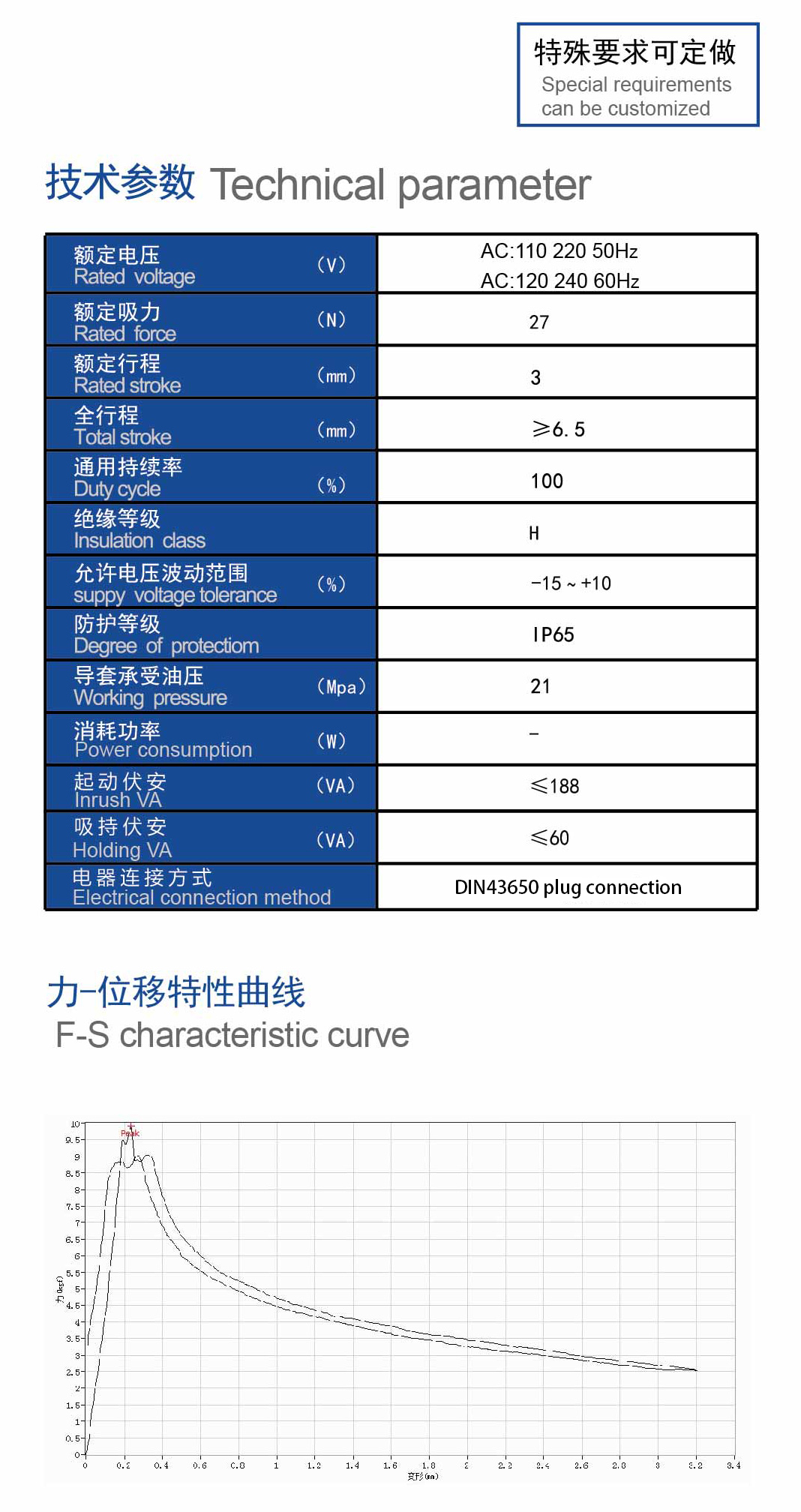

Technical data

1. Rated voltage: AC: 110 220V 50Hz / AC: 120 240V 60Hz

2. Rated force: 27N

3. Rated stroke: 3mm

4. Duty cycle: 100%

5. Insulation class: H

6. Max operation frequency: 12000t/h

7. Supply voltage tolerance: -15~+10%

8. Protection degree: IP65

9. Working pressure: 21MPa
