Technical data

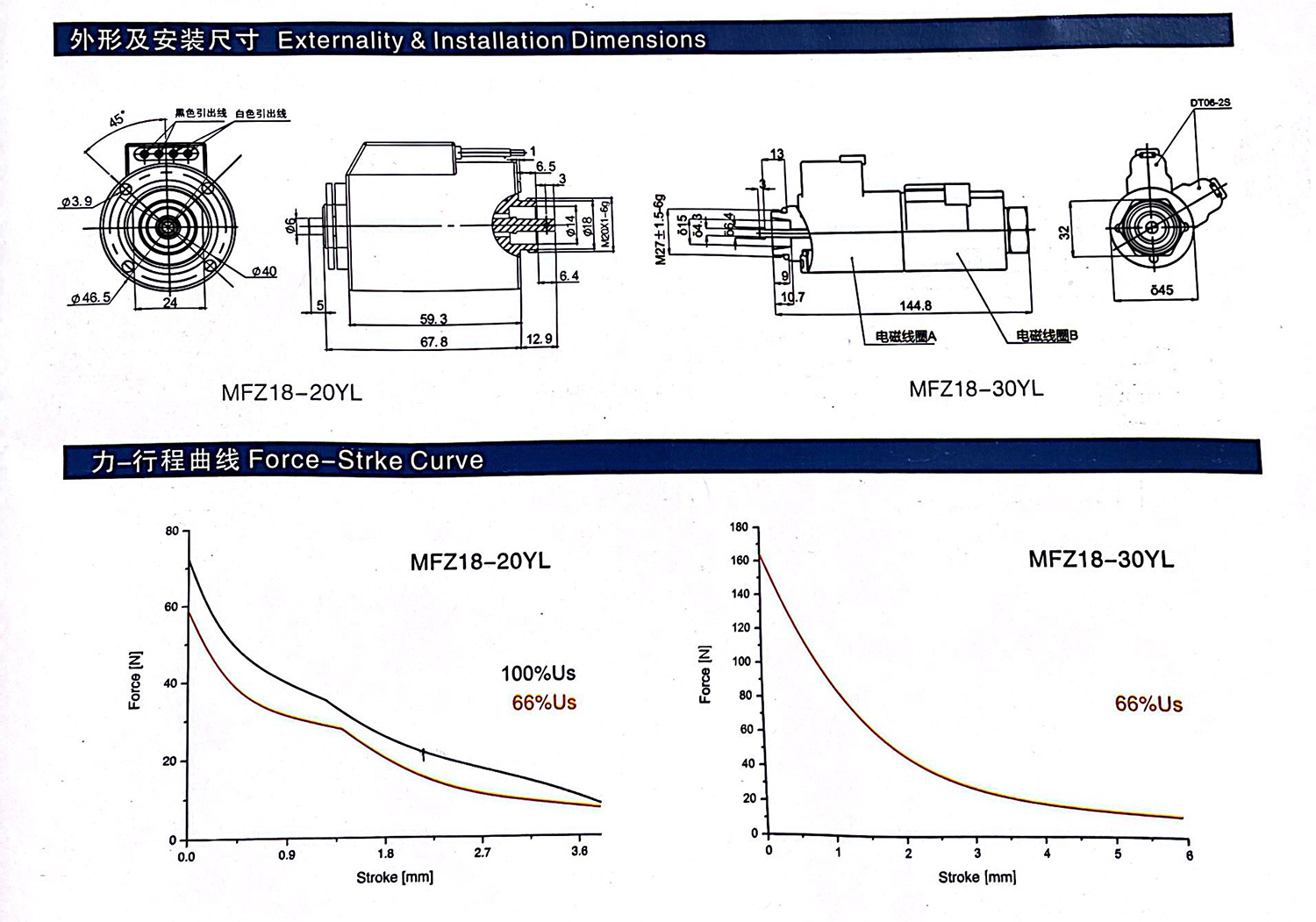

MFZ18-20YL / MFZ18-30YL

(1) Rated voltage: DC 12V

(2) Rated stroke: 2mm / 3.3mm

(3) Full stroke: ±4.2 / ±3.3

(4) Rated force: ≥20N / ≥30N

(5) Rated power: 26W / 36W

(6) Rated pressure: 10MPa / 16MPa

(7) Protection degree: IP65 / IP67
