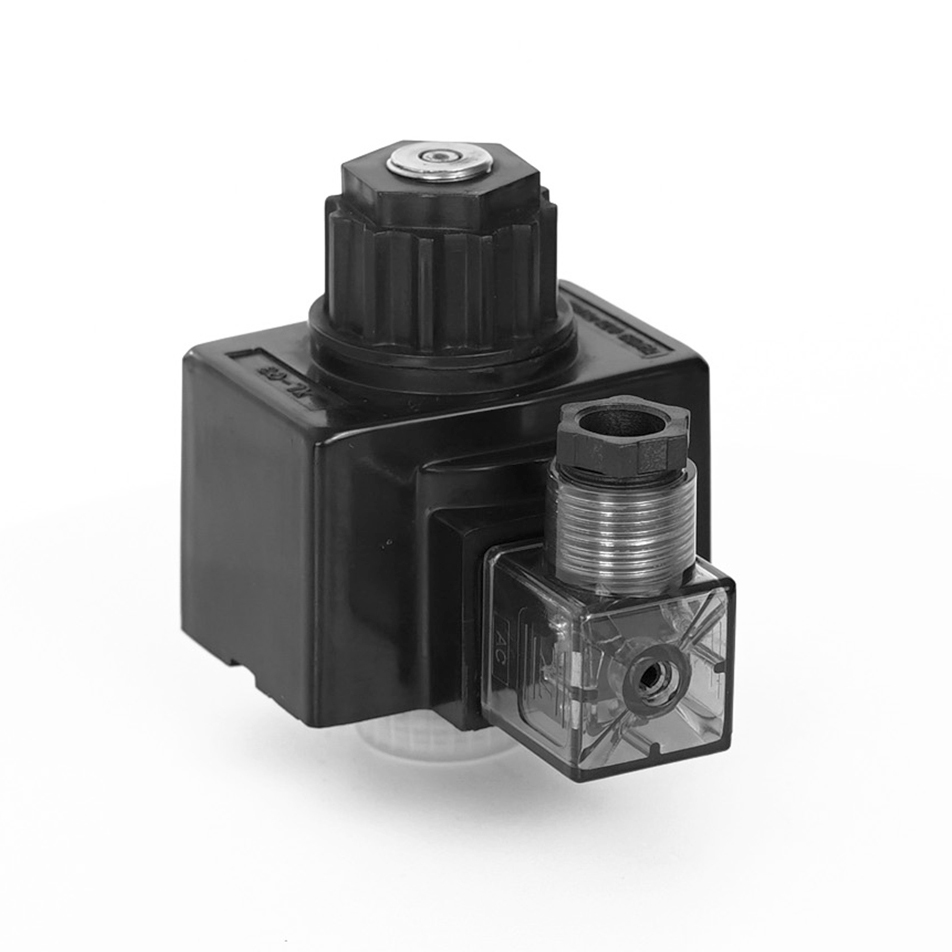

(1) Applicable to NG10 hydraulic directional solenoid valve

(2) Equipped with manual emergency device

(3) The coil can be replaced without shutdown

(4) Encapsulated in DMC thermosetting plastic

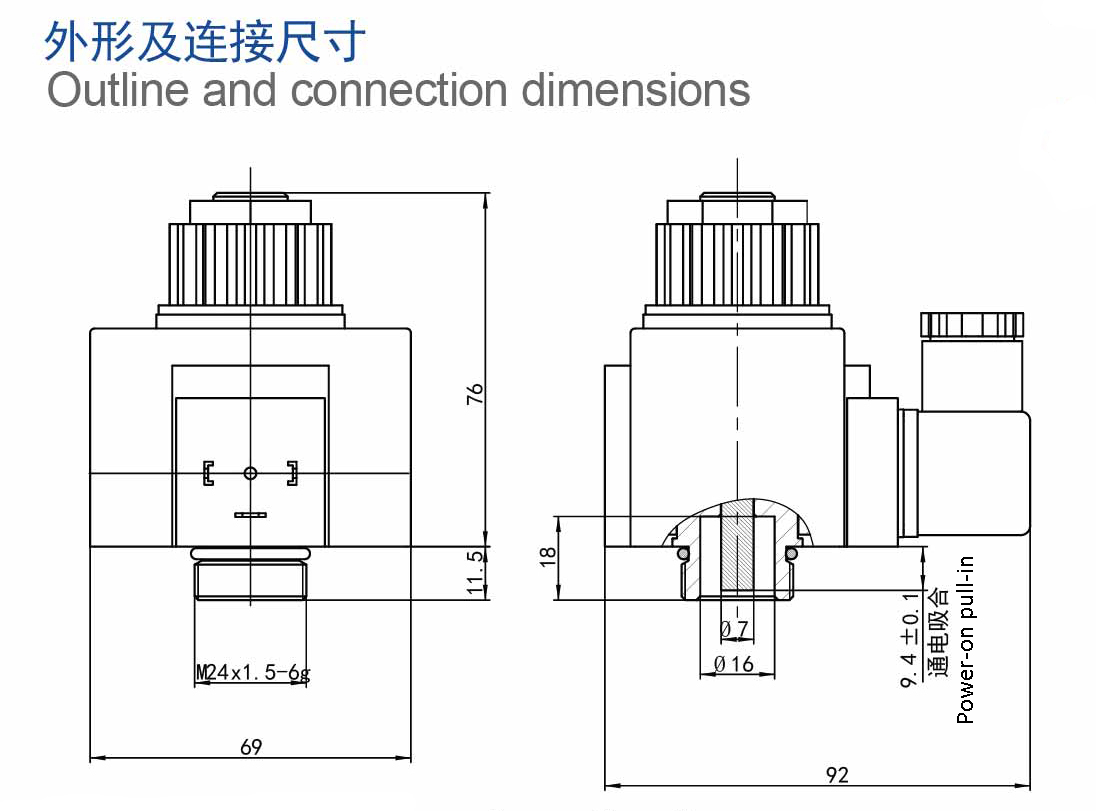

(5) Coil inner hole φ26

- The coil shall not be powered on alone, which has the risk of burning!

- The pushpin of the solenoid is used in adjustment or sometimes in emergency. But when the backpressure of the system is higher, please use screwdriver to push it, not strike it. The wallop can destroy the pushpin and the surface of the leading hole or the solenoid will leak oil or cannot reposition.
