Usual service conditions:

- It can be installed randomly.

- There is no gas or dust which can corrupt metal or destroy nonconductor, or it will affect the product lifetime.

- The solenoids fit the continuous duty system or intermittent periodic duty system.

- The reasonable wave range of supply voltage is between 85%-110% (any special requirements is possible).

- The protection is IP65 class.

Explanation of sample:

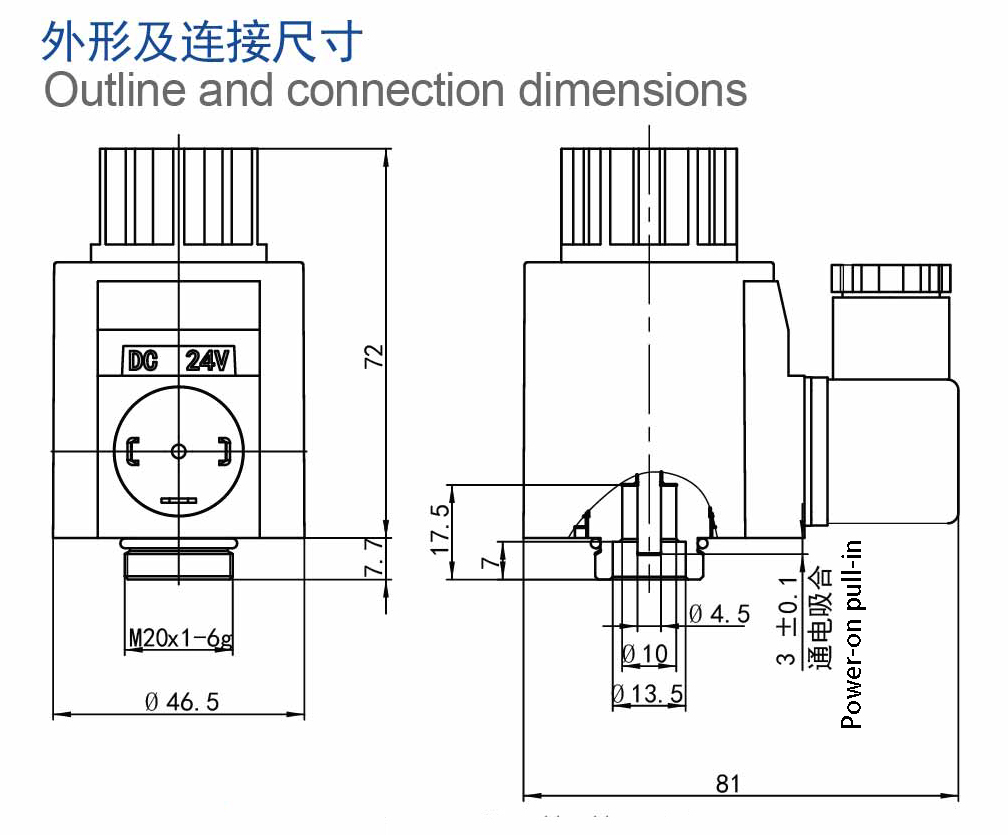

- If client has special requirements, we can adjust the connect dimension. The extended length of push pin, the supply voltage between solenoid and valve body.

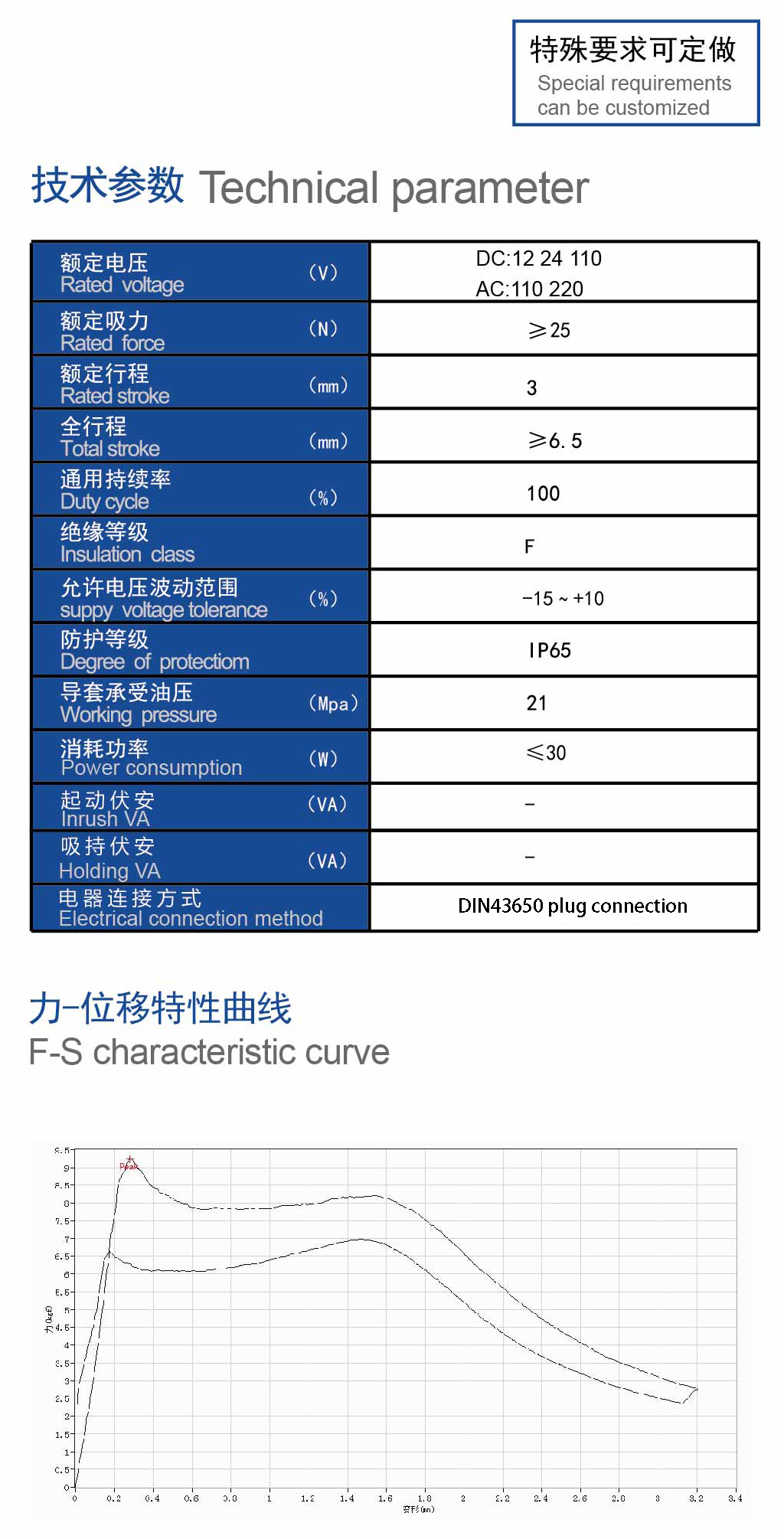

- Characteristic curve for reference only.
