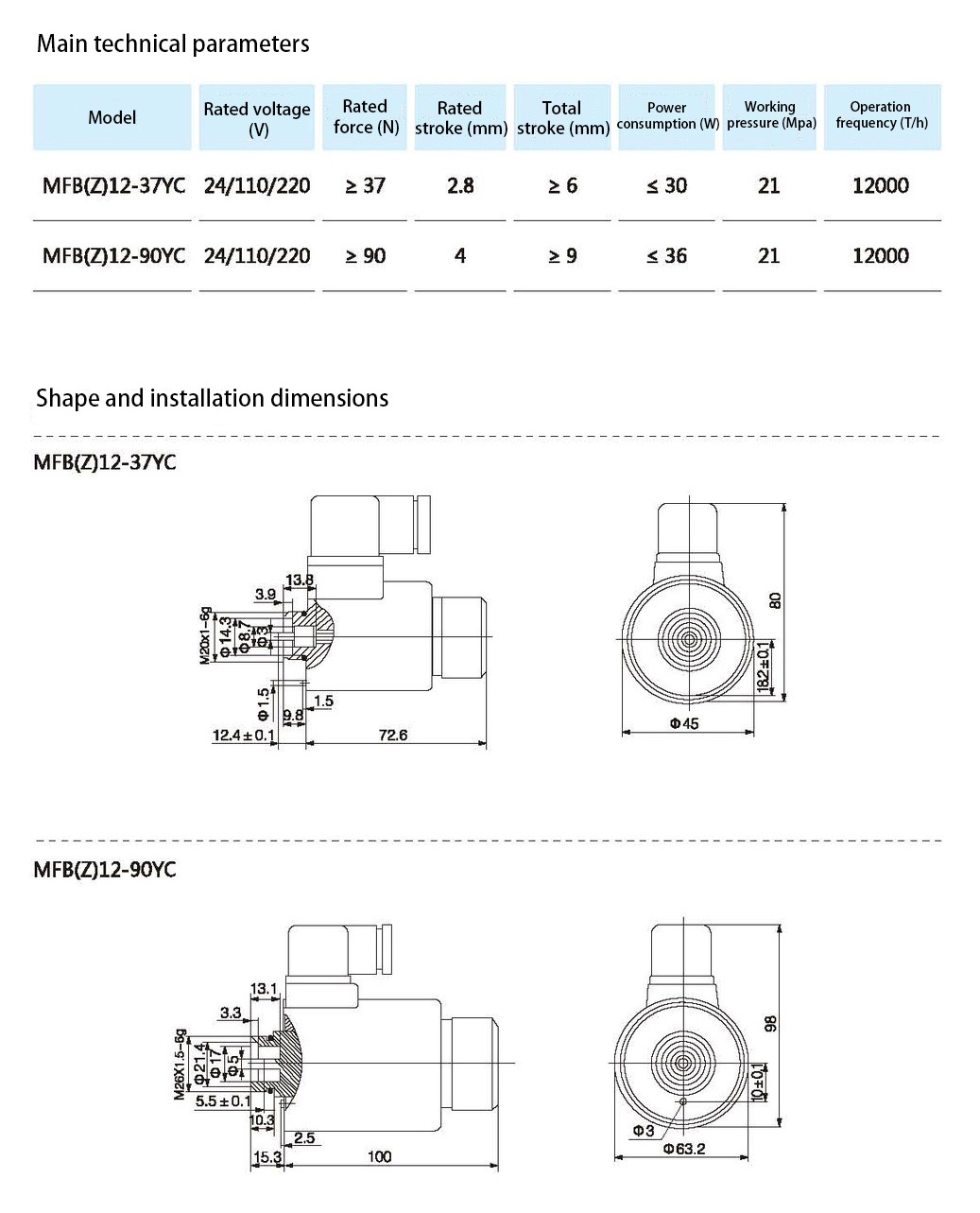

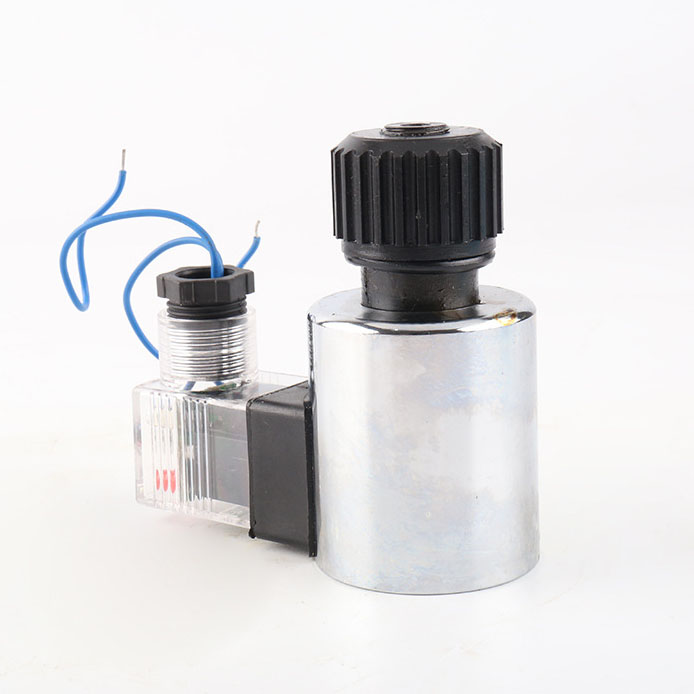

MFB12-37YC directional valve solenoid AC220V
Application scope
This series of solenoids is suitable for the control circuit of single-phase bridge full-wave rectification without filter device and the voltage up to 220V, as the power element of Rexroth type, 6&10 diameter screw connection solenoid directional valve.
Normal working, installation conditions
1. Environment temperature: +40℃~-5℃
2. Altitude: Less than 2000m
3. Can be installed in any direction
4. Suitable for long-term work system, intermittent cycle work system
5. Allowable voltage fluctuation range 85%-110%
Using precautions
1. The plug socket used by the solenoid has two forms for you to choose from: with indicator light and without indicator light
2. The manual push rod on top of the solenoid is used for manual control during commissioning or emergency situations.
Please push the manual push rod slowly when adjusting, do not use impact force.
3. When the solenoid is used in both directions, it is necessary to ensure the solenoid valve is working normally.
4. An overcurrent protection device should be installed between the electrical control system and the magnet to
avoid burning the solenoid and electronic control components under abnormal conditions.
