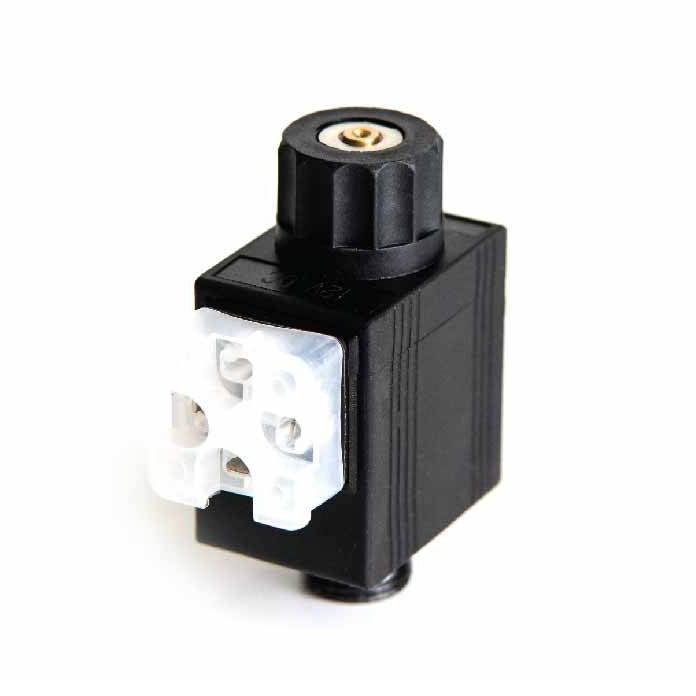

(1) Applicable to multi-way solenoid valve

(2) Equipped with manual emergency device

(3) Threaded coils enable downtime-free replacement.

(4) Coil plastic package, coil inner hole φ16

Notes:

(1) The solenoid can be installed in any direction.

(2) The socket which solenoids used is according to ISO4400 Standard, including two specifications: indicator light or without light. You can choose as per your requirements.

(3) The pushpin of the solenoid is used in adjustment or sometimes in emergency, but when the backpressure of the system is higher, please use screwdriver to push it, not strike it. The wallop can destroy the pushpin and the surface of the leading hole, causing the solenoid to leak oil or cannot be reset.
